How to install digital trigger unit V1.42 version for V2 gearbox?

How to install digital trigger unit V1.42 version for V2 gearbox?

Installation steps

Step1:

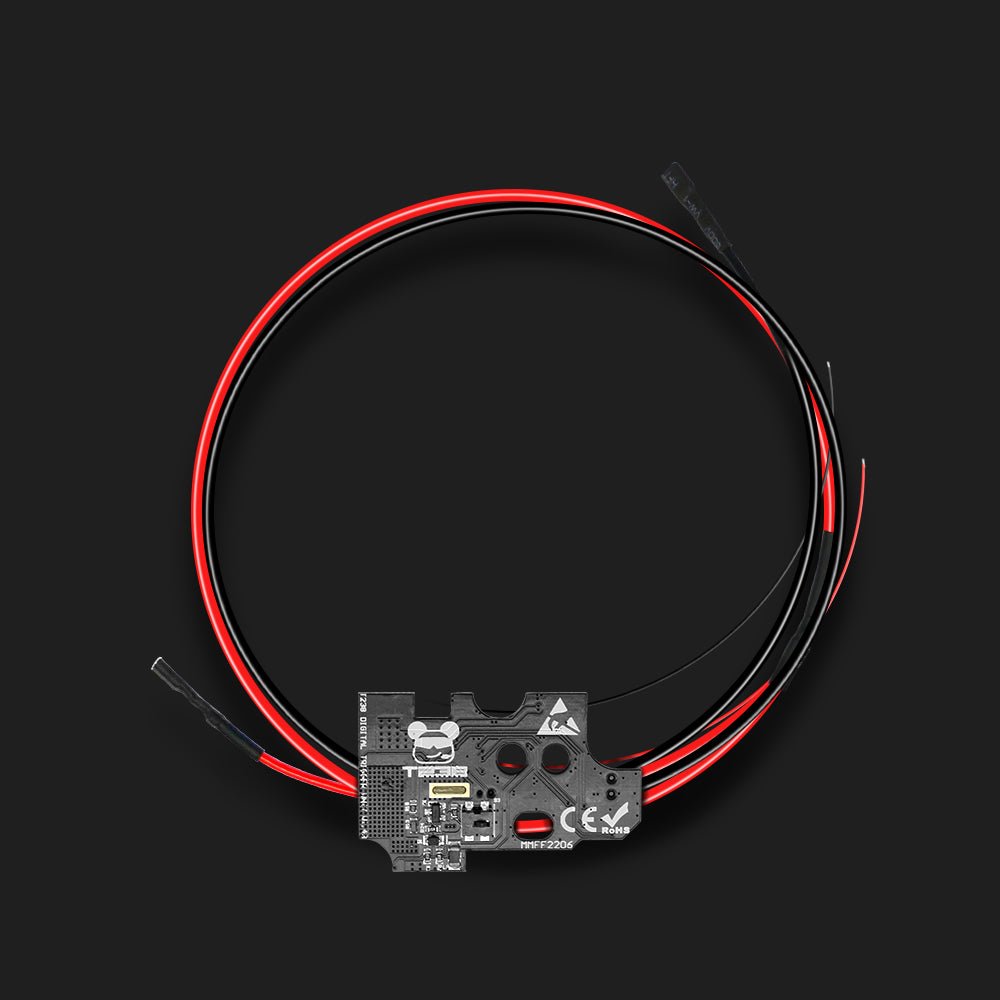

Parts to be prepared:gearbox,bearings and DTU with wires.

Step2:

Install the bearings first.

Step3:

Put the DTU in the position.

Step4:

If the gearbox interferes with the switch,the shell needs to be cut off.

Step5:

The switch cannot interfere with the gearbox shell.

Step6:

If the screw seat is higher than the DTU,cut it off a little.

Step7:

Slightly lower than DTU.

Step8:

Adjust the fire DTU angle and screw in the screw.

Step9:

Do not install the selector plate in this direction,the selector switch can be damaged.

Step10:

The right installation direction should be like this.

Step11:

Make sure that the selector plate can be stuck in these four positions.

Step12:

Lay out the wires.

Step13:

Pay attenion to this small switch.It is not allowed to press it when installing the sector gear.
It is recommended to shim the gearbox before installing the DTU.

Step14:

Install the sector gear with the convex point upward to avoid damaging the detection switch.

Step15:

Let's see more clearly from this angle.

Step16:

The sector gear can only be rotated in this direction to avoid damage to the detection switch.

Step17:

Install the trigger,ensure that the trigger can touch the switch and the wires will not interfere with the switch.
