T238 TRACER UNIT RGB VERSION MANUAL

T238 TRACER UNIT RGB VERSION MANUAL

Description

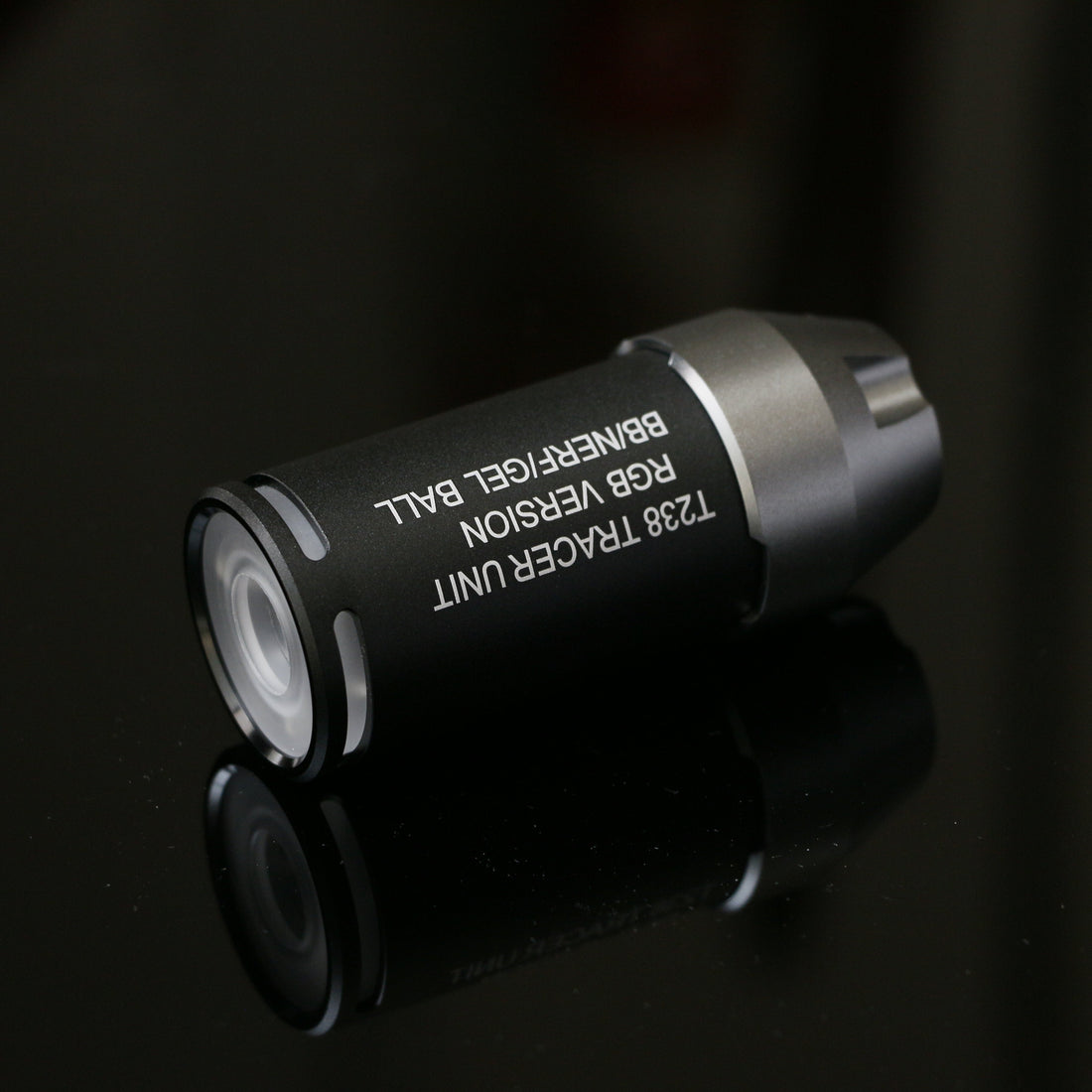

 T238 tracer unit is designed for BB/NERF dart/Gel ball blasters, it attachments to your blaster which allow your BB/NERF dart/Gel ball to glow in the dark. To see the flight path of your shot, special tracer BBs/NERF darts/Gel balls are needed. When using RGB version, you can still see a rainbow of gunfire effect without the help of special bullets.

Main features

Dimensions: 85mm long, 35mm outer diameter and 14mm inner diameter

Weight: 90g

Interface: 19mm (with 14 CCW adapter and 19mm to 16mm adapter)

Functions: Rainbow tracer mode, dynamic gunfire color, tracer BBs/NERF darts/Gel balls charging, adjustable gunfire color, 20 minute timeout automatic shutdown, low battery automatic shutdown

Supported rate of fire: max. 50rps

Supported projectile types: spherical projectile and cylindrical strip projectile with 6-14 outer diameter

Battery: 760mah, maximum endurance 40000 rounds, charging with Micro USB cable

Charging

Screw off the shell and plug in the USB cable. The red LED lights up when charging and goes out when full.

Function

Function

Operation

Reaction

Power on and enter the rainbow trajectory mode

Press once to power on and enter the rainbow trajectory mode and turn on bullet charging function when in the shutdown state

RGB LED and UV LED will blink once

Dynamic gunfire color

After entering the rainbow trajectory mode, briefly press once to switch to the Dynamic gunfire color mode

RGB LED and UV LED will blink twice

Red gunfire color

After entering the Dynamic gunfire color mode, briefly press 1 to switch to the Red gunfire color mode

Red LED and UV LED will blink once

Yellow gunfire color

After entering the Red gunfire color mode, briefly press once to switch to the Yellow gunfire color mode

Yellow LED and UV LED will blink once

Green gunfire color

After entering the Yellow gunfire color mode, briefly press once to switch to the Green gunfire color mode

Green LED and UV LED will blink once

Cyan gunfire color

After entering the Green gunfire color mode, briefly press once to switch to the Cyan gunfire color mode

Cyan LED and UV LED will blink once

Blue gunfire color

After entering the Cyan gunfire color mode, briefly press once to switch to the Blue gunfire color mode

Blue LED and UV LED will blink once

Pink gunfire color

After entering the Blue gunfire color mode, briefly press once to switch to the Pink gunfire color mode

Pink LED and UV LED will blink once

White gunfire color

After entering the Pink gunfire color mode, briefly press once to switch to the White gunfire color mode

White LED and UV LED will blink once, briefly press once to switch to the rainbow trajectory mode

Only enable the bullet charging function

Press and hold 2 seconds to turn off the gunfire simulation function when in the power on state, and enable the bullets charging function

UV LED will blink once

Only enable the gunfire simulation function

Long press 2 seconds to turn off the bullets charging function, and enable the gunfire simulation function when only the bullet charging function is turned on.

RGB LED will blink once

Power off

Long press 2 seconds to power off when only the gunfire simulation function is turned on.

The white light gradually darkens until it is turned off



 >>Click to download<<
