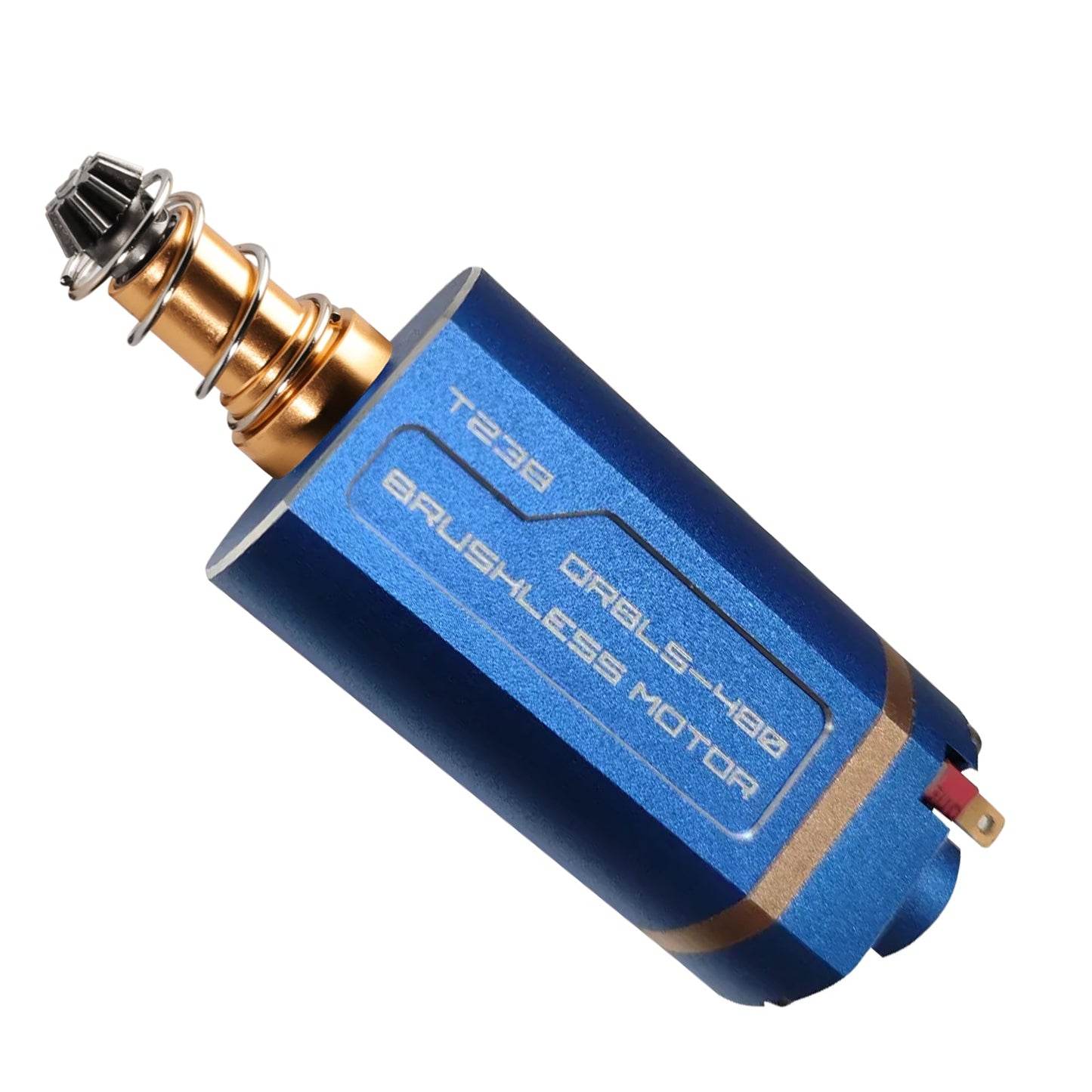

T238 QRBLS-480 Brushless Motor Basic Edition

The T238 QRBLS-480 brushless motor is a high-performance upgrade for AEG replicas and gel ball blasters. Designed for competitive players and milsim enthusiasts, it serves as the entry-level model in the T238 Brushless Motor Series, featuring simplified operation with non-adjustable speed control. Key enhancements include: Optimized thermal management (5% lower operating temp vs. previous gen); Improved efficiency; Faster response, making it the ultimate choice for beginners.

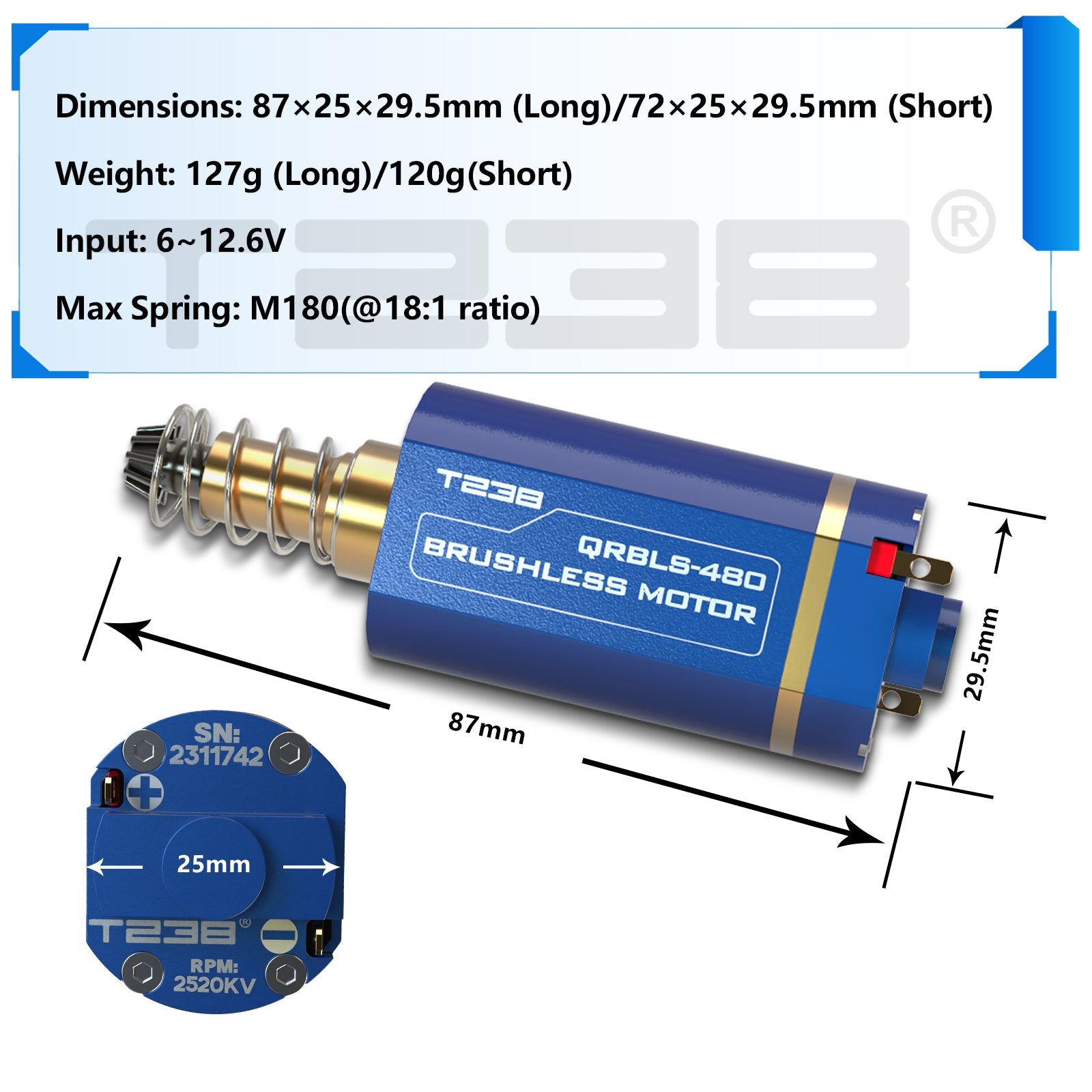

Key Specifications:

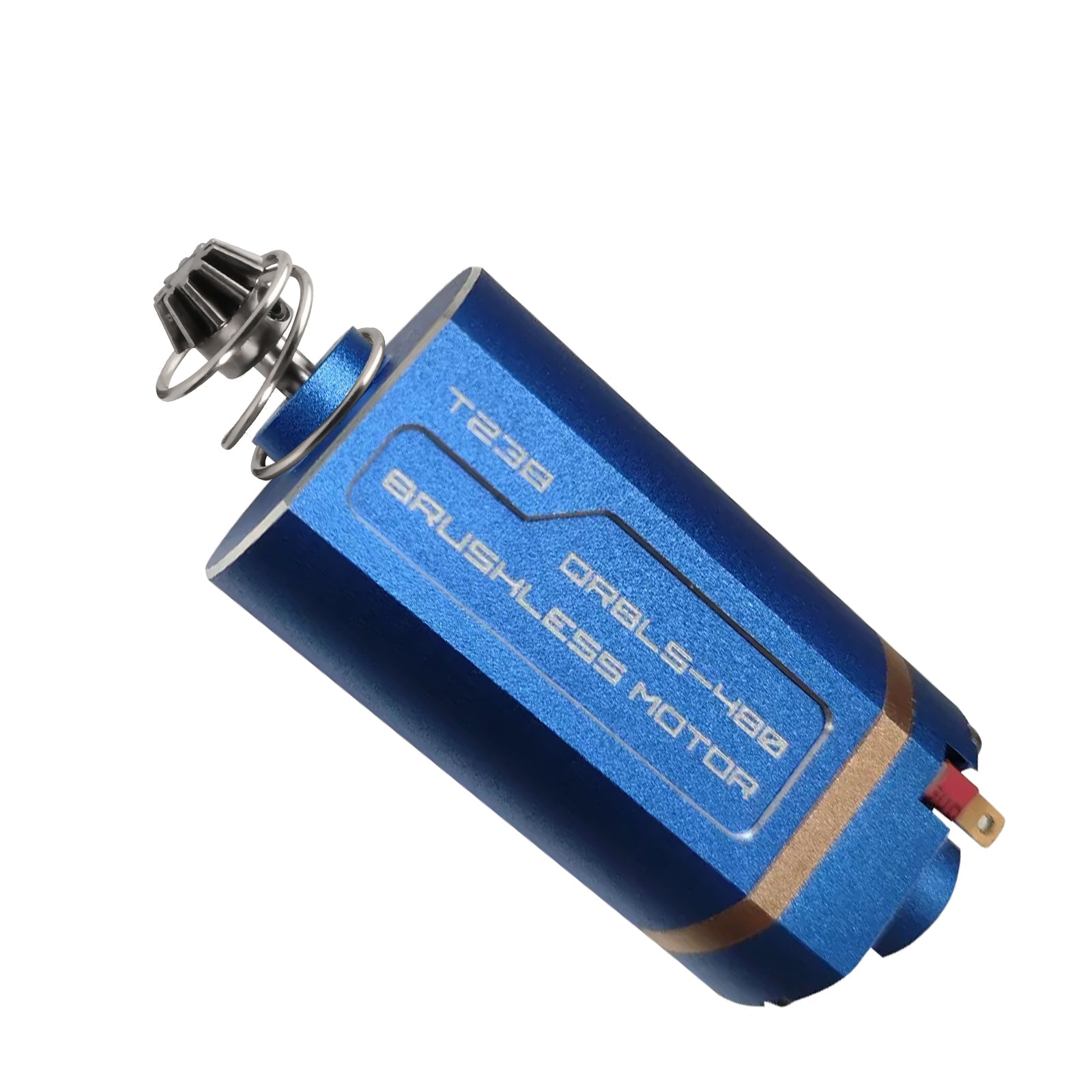

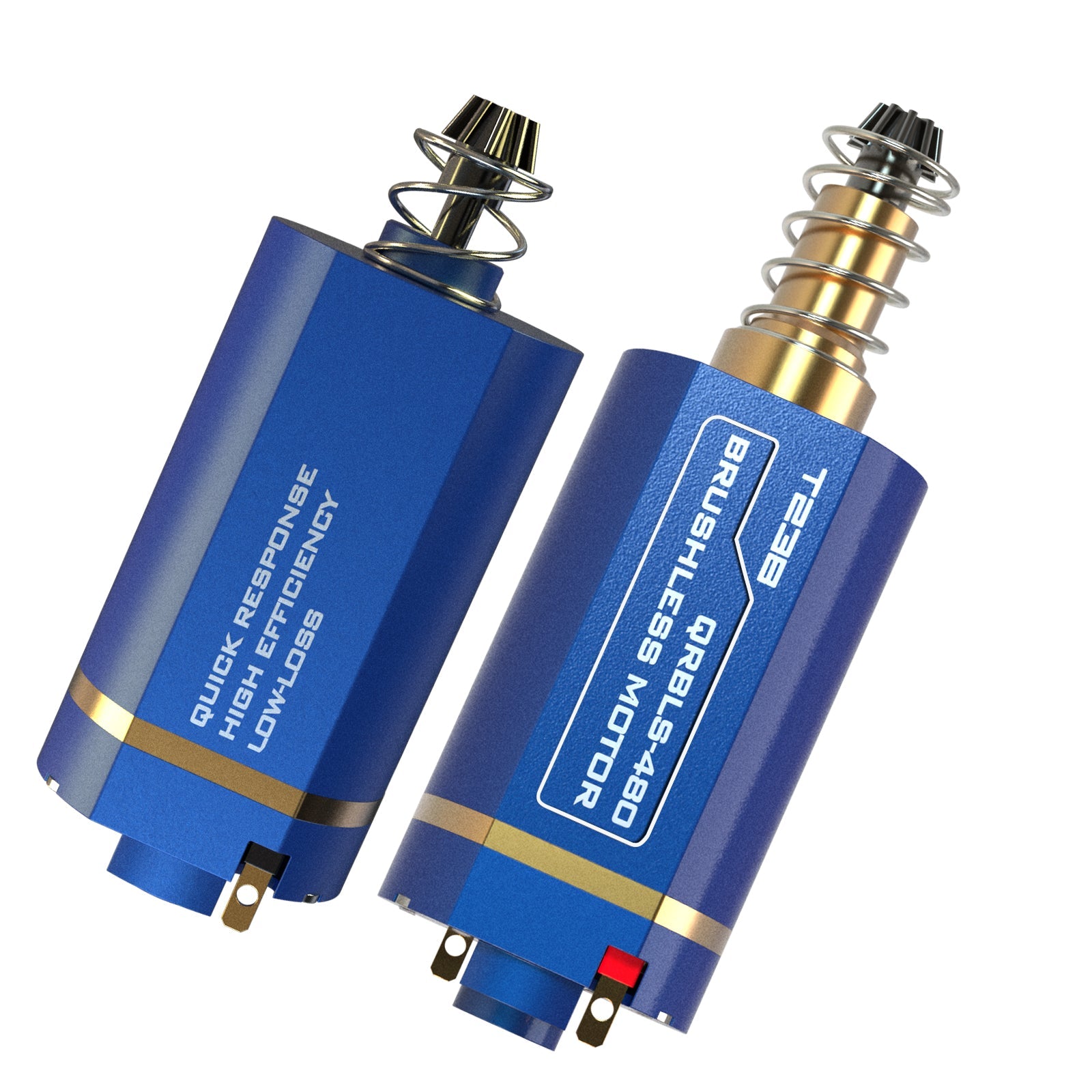

Shaft Options: Long shaft / Short shaft

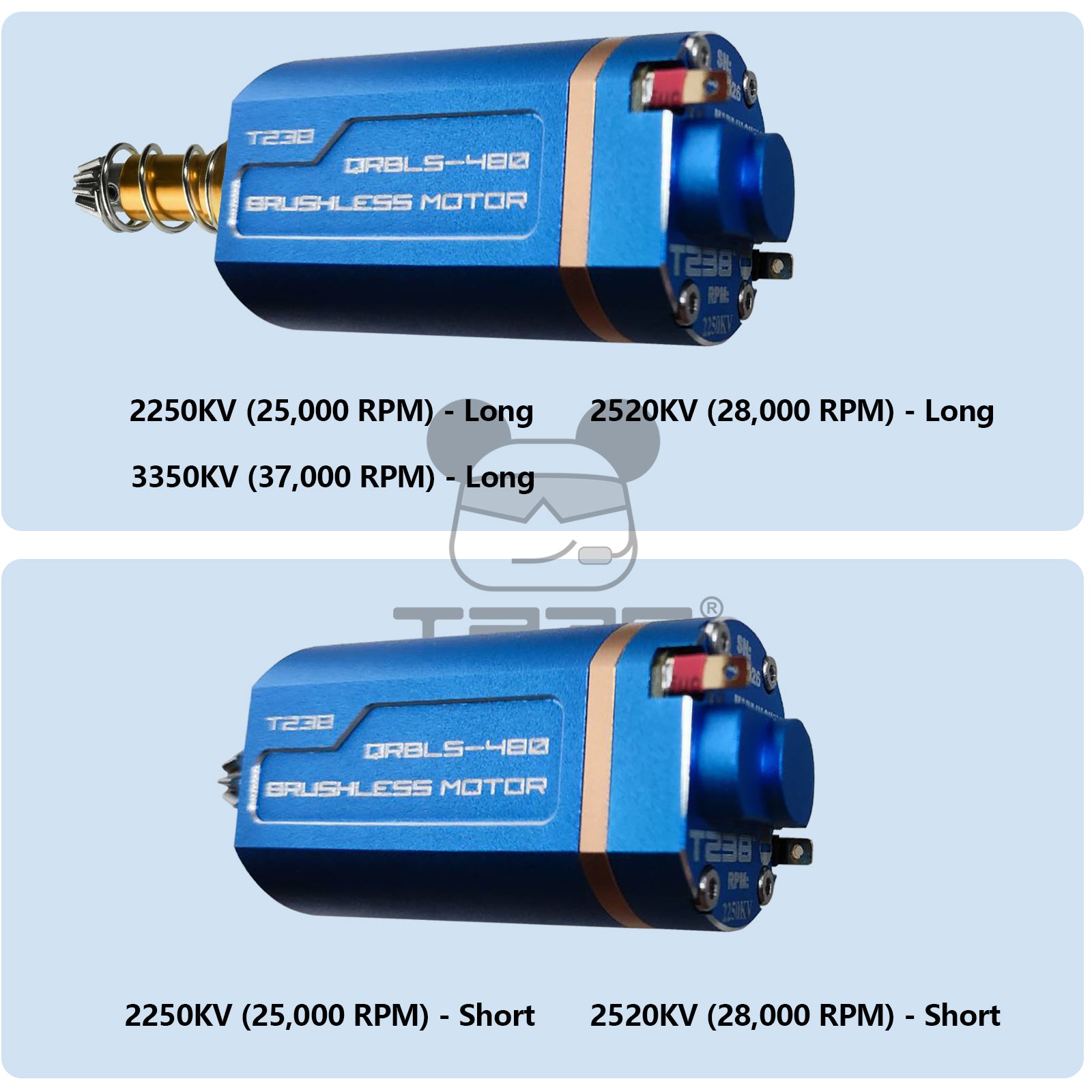

KV Variants:

• 2250KV (25,000 RPM) – Optimized for DMR builds
• 2520KV (28,000 RPM) – Balanced for all-purpose use
• 3350KV (37,000 RPM) – High-speed CQB/SQB performance

Advantages:
✔ Ultra-fast response (No brush lag)
✔ High efficiency (Reduced energy loss)
✔ Low heat generation (Sustained performance)
✔ Maintenance-free (No brush wear or replacement needed)

Compatibility Notes:

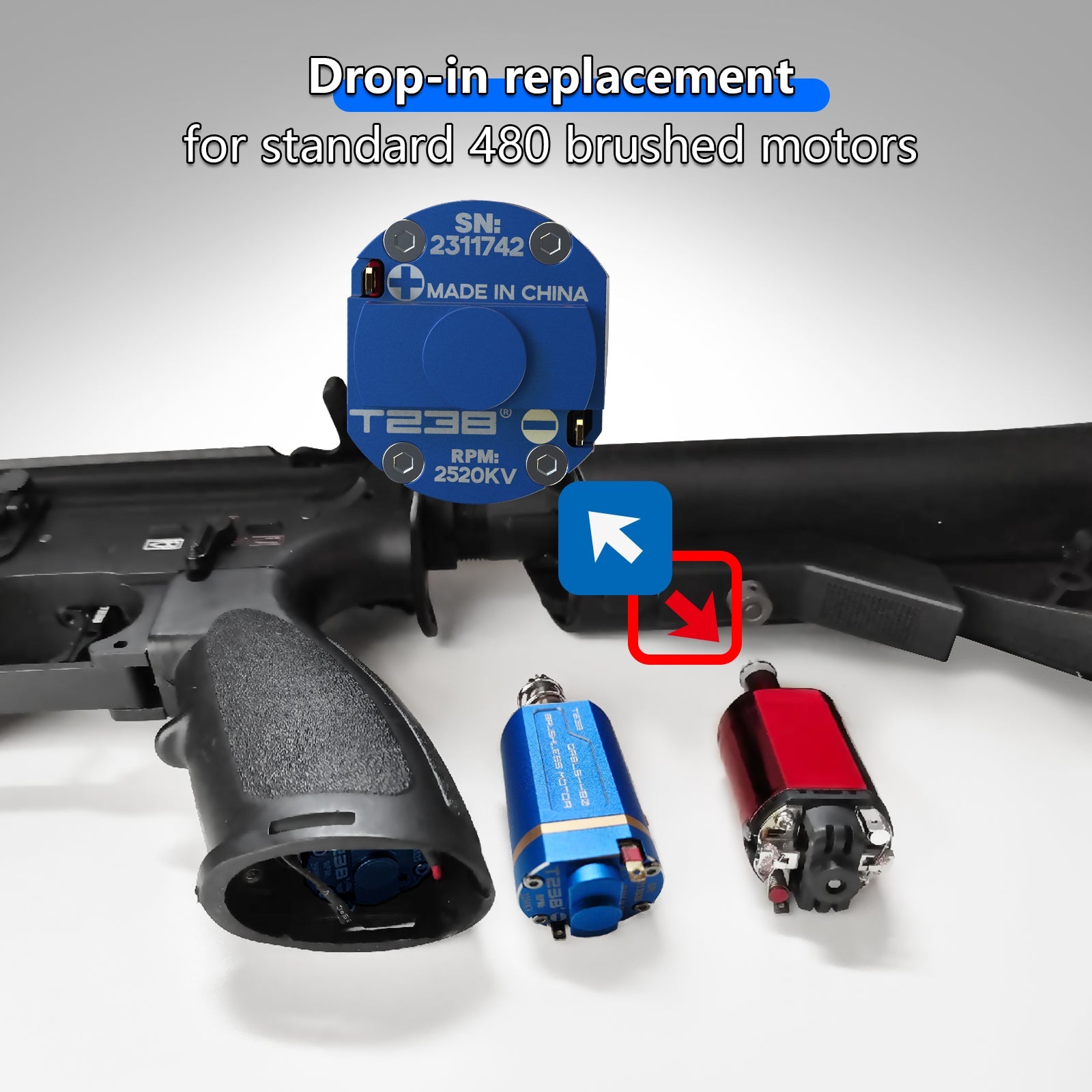

Gearboxes: V2/V3 (Verify shaft length before installation)

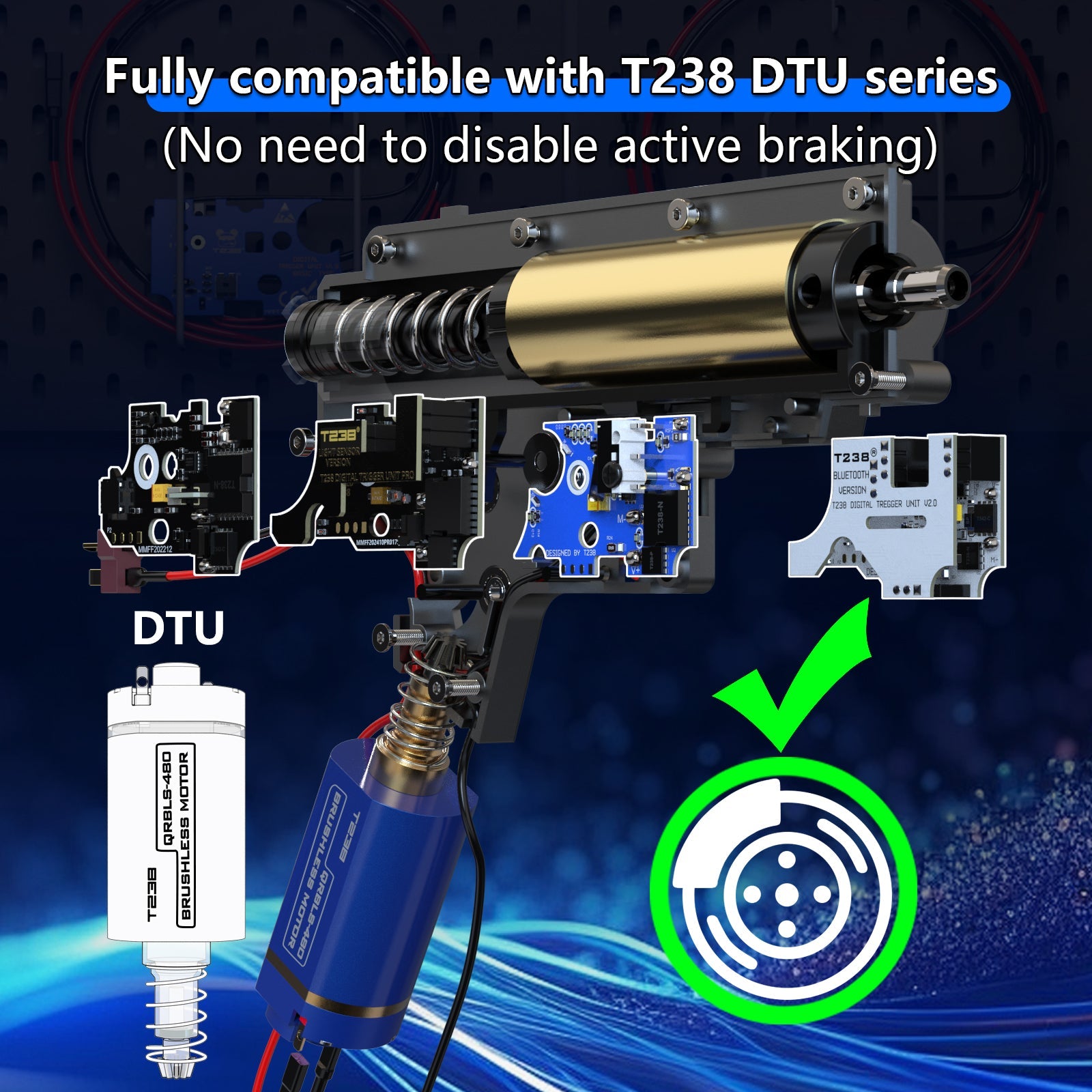

T238 Ecosystem: Works flawlessly with T238 DTUs (no braking conflicts)
Battery Systems: 2S/3S LiPo (XT60/T-Dean connectors recommended)
