T238 DTU V2 BASIC(V1.9) For V2 Gearbox
Describe:
T238 digital trigger unit BASIC is a programmable MOSFET designed for beginners who only need simple functions like stable semi-auto and preventing battery over discharge. The system uses infrared sensors to detect gear rotation, it has many functions, such as binary trigger, paint ball shooting mode, auto-loading function for gel ball magazine, over heat protection and so on. Besides, it also has the functions of gearbox block-up protection. It can effectively improve the stability, shooting speed and response speed of gearbox. The module uses a maximum of 16.8V batteries. Soldering and wiring are required.
Functions:
1. Binary trigger. when the trigger is pressed and released, the gearbox will fire once each.
2. Paint ball mode. In this mode, if the trigger switch is triggered at a slower frequency, the system is in single shot mode. If the trigger switch is triggered at a faster frequency, the system is in Binary-trigger mode
3. Block-up protection. When gearbox Block-up occurs, the system stops working and emits an elongated ‘beep’ sound. Please check the wave box immediately by power off.
4. Auto-loading function is designed for gel ball blaster magazines with motor inside, when changing the magazine, the magazine motor will run automatically for 1 second.
5. Short circuit protection. When a short circuit is detected in the motor/magazine circuit, the system will cut off the power to the motor/magazine and prompt through LED flashing. Please disconnect the battery in a timely manner and troubleshoot the problem.

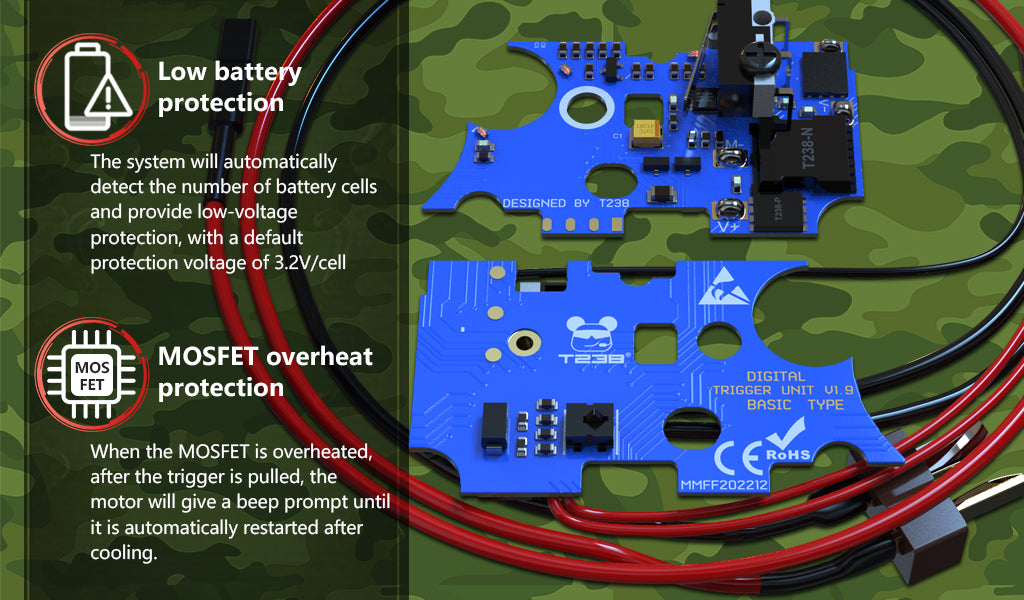

6. Low battery protection. The system will automatically detect the number of battery cells and provide low-voltage protection, with a default protection voltage of 3.2V/cell.
7. When the MOSFET is overheated, after the trigger is pulled, the motor will give a beep prompt until it is automatically restarted after cooling.
Main parameters:
- Size: 45*30*14mm
- Operating voltage: 6-16.8V
- Short circuit protection
- Active brake tech
- Uses optical sensor for gear detection
- Binary trigger and paint ball shooting mode
- MOSFET overheat protection
- Maximum start current is 300A, maximum brake current is 100A, maximum magazine drive current 30A
Package Content:
- Digital Trigger Unit V2 BASIC X1
- Manual X1
- Badge X1
- Small bag accessories X1
Shooting Modes:
Binary-trigger mode: In this mode, when the trigger is pressed and released, the gearbox will fire once each
Paint ball mode: In this mode, if the trigger switch is triggered at a slower frequency, the system is in single shot mode. If the trigger switch is triggered at a faster frequency, the system is in Binary-trigger mode
Note:
This product requires soldering and wiring. It is recommended that installation is undertaken by an experienced technician.
