T238 DTU V3 PRO Light Sensor Version For V3 Gearbox
T238 DTU V3 PRO Light Sensor Version For V3 Gearbox

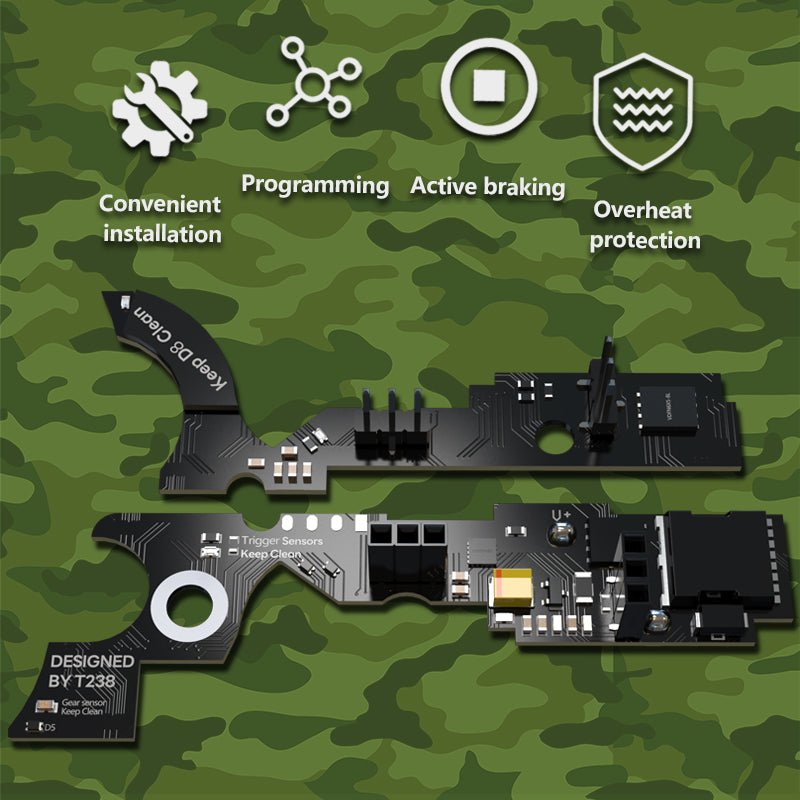

The DTU V3 PRO Light Sensor Version for V3 gearbox is a drop-in MOSFET module, specifically designed for AIRSOFT replicas, gel ball blasters, such as AK74, AK47, G36 and other replica/blaster with V3 gearbox. The V3 PRO uses a fully optical sensor design with two trigger sensors that can set the sensitivity and AUG mode of the trigger. It also integrates a short-circuit protection design that can detect the presence of a short circuit in the circuit of the motor or magazine and provide an LED prompt.
Functions:1. Supports up to 14.8V battery.
2. Short-circuit protection. When a short circuit occurs in the motor or magazine circuit, the system will stop working and prompt through LED flashing.
3. Auto-loading function is designed for gel ball blaster magazines with motor inside,when changing the magazine, the magazine motor will run automatically for 0.5 second.
4. PRE-COCKING. The piston position in semi-auto mode can be adjusted backward by programming the brake delay time to achieve the PRE-COCKING function and reduce the firing delay.
5. MOSFET overheat protection. When the DTU is overheated, after the trigger is pulled, the motor will give a beep prompt until it is automatically restarted after cooling.
6. Low battery protection. The system will automatically detect the number of battery cells and provide low-voltage protection, with a default protection voltage of 3.2V.
7. Active braking. The active brake prevents the over-spin of gears, this solve the issue that single shot changes to multiple shot under high voltage. Meanwhile,the spring is fully released in semi-auto model and parts in the gearbox are not under strain, increase the life cycle of your gearbox.
8. Block-up protection. When gearbox block-up occurs, the system stops working and emits an elongated 'beep' sound. Please check the gearbox immediately by power off.
9. Multiple shooting modes. The system includes multiple shooting modes，those modes can be selected by selector sensor.
Package Content:
- Digital Trigger Unit V3 PRO X1
- Manual X1
- Warranty X1
- Badge X1
- Small bag accessories X1
Shooting Modes:
- SAFE:This model is completely the same as original safe model.The trigger is stopped by safety lever.
- SEMI:This model can be programmed to implementing semi-auto,double stroke single shot,3-rounds burst to 6 rounds burst,the default model is semi auto.
- AUTO:This model can be programmed to implementing full-auto,3-round burst,6-round burst and 9-round burst,the default model is full-auto.
Note:
This product requires soldering and wiring. It is recommended that installation is undertaken by an experienced technician.
