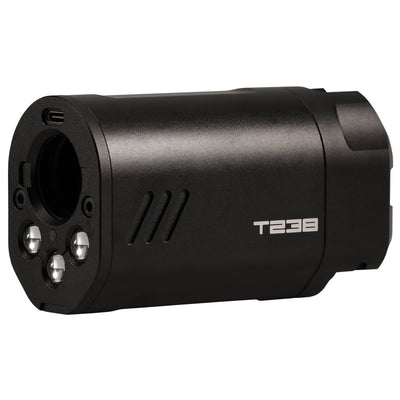

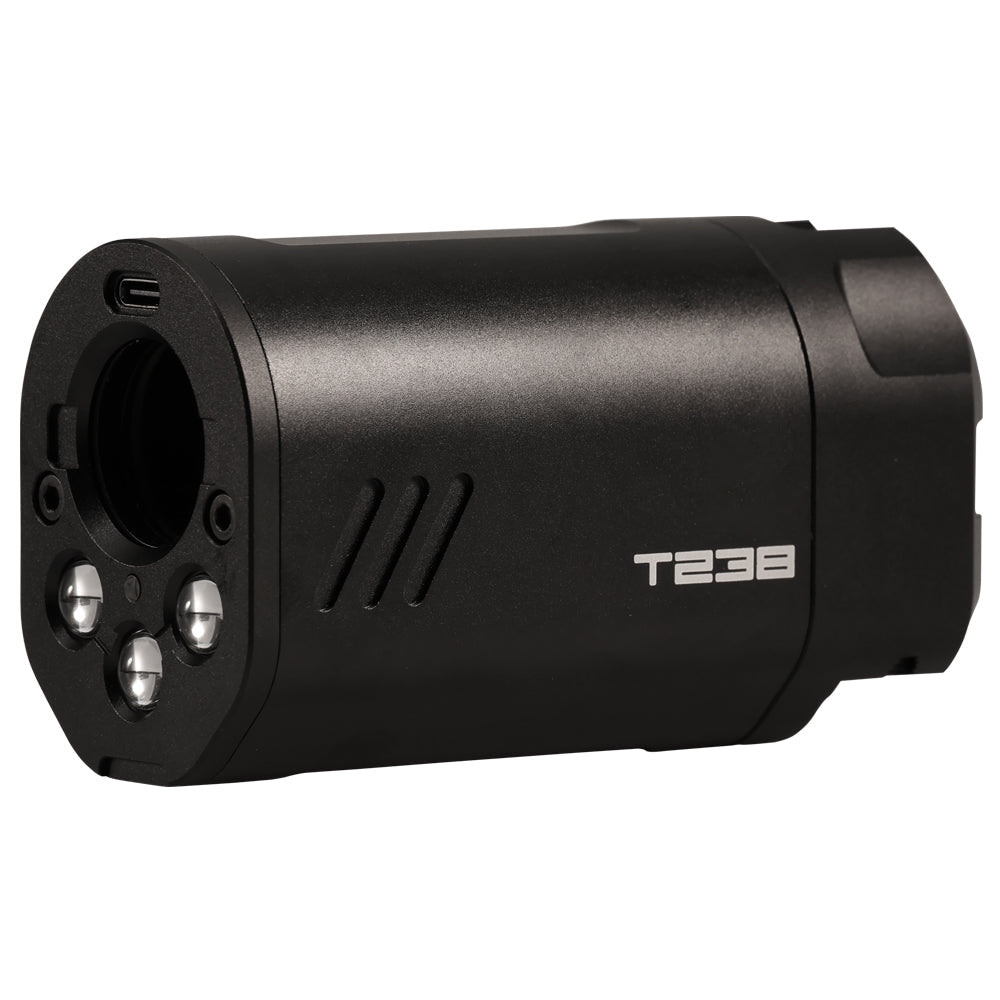

T238 Burst+ Tracer Unit
T238 Burst+ Tracer — Blinding Flash, Fast Fit, Fight-Ready!

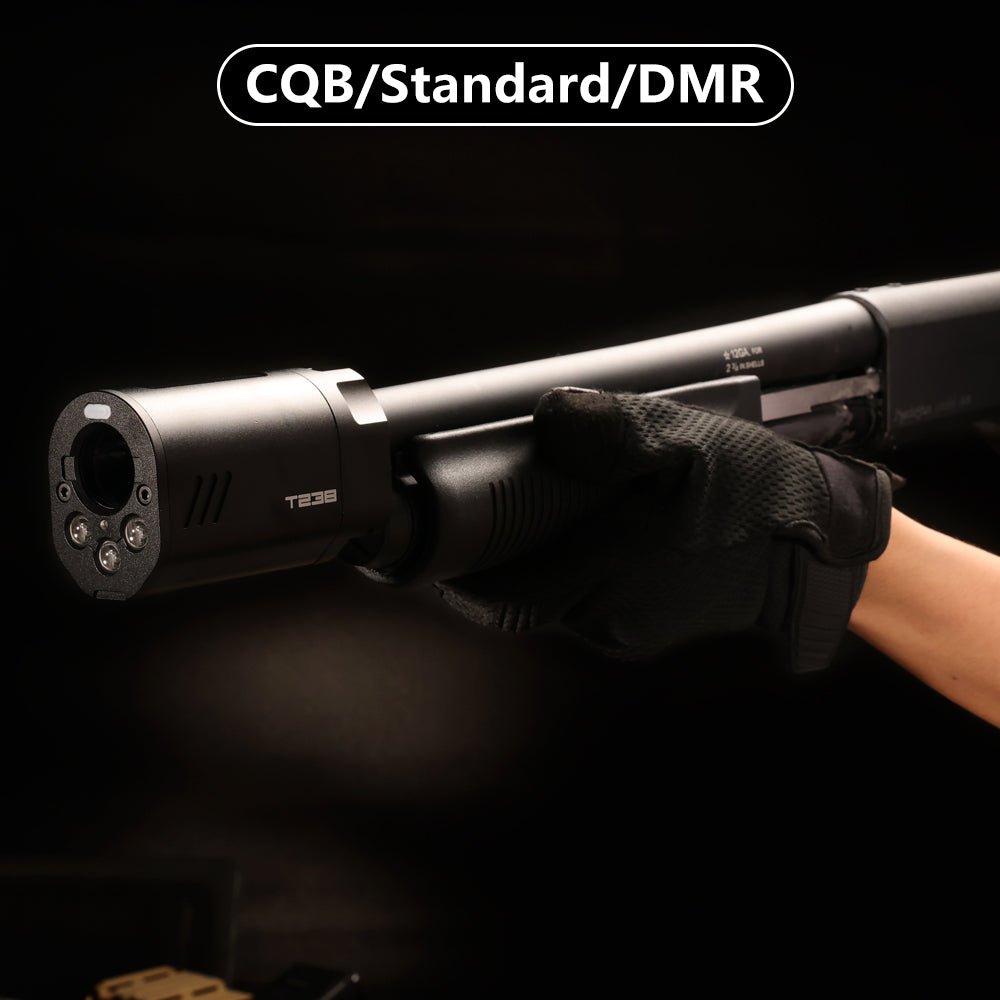

T238 Burst+ Tracer is specifically designed for airsoft shotguns. It features three high-power LED beads equipped with focusing lenses, delivering exceptional muzzle flash simulation while also functioning as a tactical flashlight to disrupt opponents' vision.

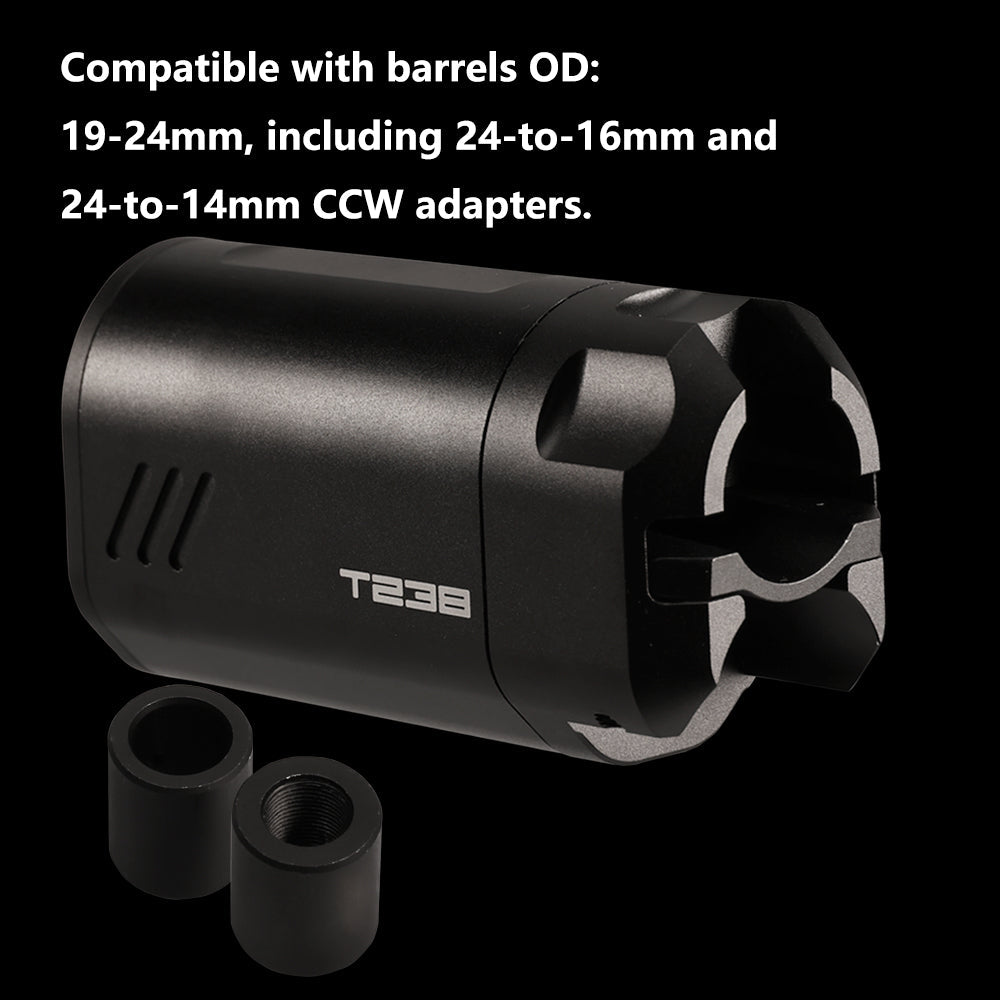

With an inner diameter of 23mm and a clamp-on design, it can be quickly installed on barrels with an outer diameter of 19-24mm. The package includes 24mm-to-14CCW and 24mm-to-16mm adapters, ensuring compatibility with foam dart blasters, gel ball blasters, and airsoft replicas.
Note: Tracer BBs are required to activate the projectile tracing function.
DTU
Designed to sync flawlessly with the BL-480 motor. No braking conflicts, just seamless performance—elevate your control.
Tracer Unit
Pair with the airsoft for precision and visibility. Track every shot with unmatched clarity, only from T238.
BURST+ Rainbow Tracer Unit
Patented Multi-Color Phase-Shift Technology | Taiwan Invention Patent No. I847839
Revolutionary Technology
Triple-channel IR detection system: 3 high-sensitivity elements aligned along projectile trajectory
Detection Logic:
- Sensor 1 (exit point): Activates Blue LED control channel
- Sensor 2 (mid point): Activates Green LED control channel
- Sensor 3 (entry point): Activates Red LED control channel
Patented Multi-Color Phase-Shift Technology
(Taiwan Invention Patent No. I847839)

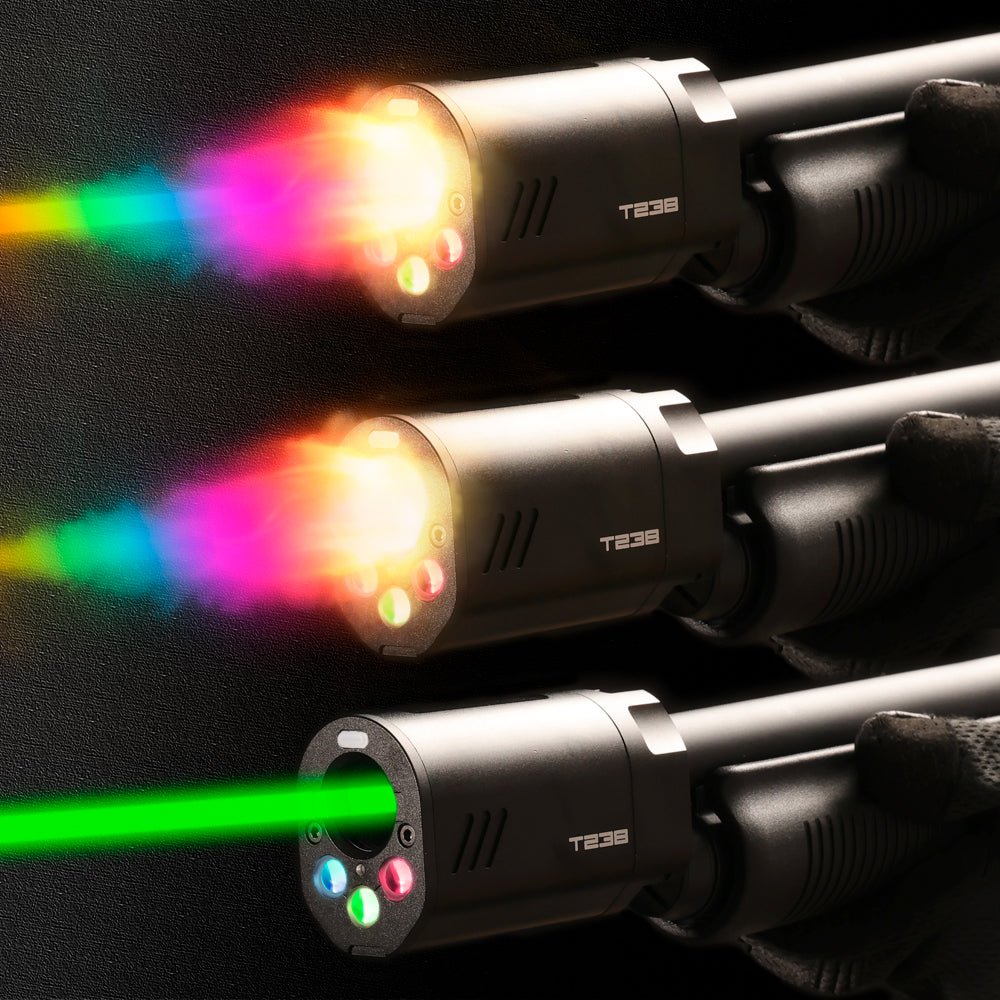

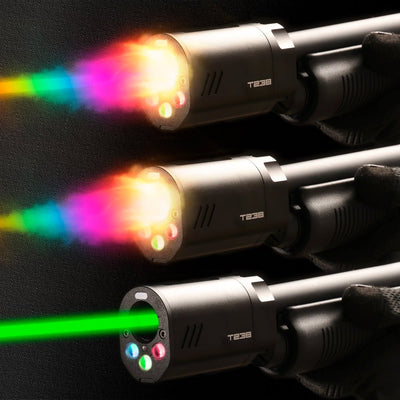

- Phase-Shift Color-Mixing Technology: Three 120°phase-shifted periodic signals blended to produce multi-color effects
Also Support Red BBs
The Burst+ also support Red BBs
Smart Dual-Illumination System
- Combo Mode - Run both effects simultaneously for cinematic battles
- UV Tracer Mode - Activates glow BBs/gel balls mid-flight
- Muzzle Flash Mode - Golden-yellow LED simulates muzzle flash
Elite Combat Performance
- 50 RPS Tracking - Matches DSG high-speed build requirements
- 40,000 Shot Endurance - 760mAh fast-charge battery (Type-C)
Superior Projectile Versatility
- 23mm smoothbore design (vs standard 11mm)
- Accommodates oversized tracer BBs (6~22mm)
- Reduce the probability of projectile destroying the inner tube
Clamp-on Design
- It maximizes compatibility with tubes of varying outer diameters.
- Simply adjusts the two M4 screws for quick diameter adaptation (19-24mm).
15mm-wide Sight Channel Design
- Optimized for replicas with front sights
- Allows installation of the BURST+ without removing the existing front sight.
30mm-diameter Loading Tube Well Design
Compatible with replicas featuring loading tubes
30° LED Collimating Lens Delivers
Enhanced muzzle flash simulation and extended illumination range.
User-Friendly Design
- Front-Mounted Controls - Adjust settings without removing the unit
- Type-C Charging Port - No disassembly needed
- Auto Sleep Mode - Preserves battery with inactivity shutdown
- Auto-save memory function - Preserves current settings priorto shutdown
Multi-thread Compatibility
Clamp-on design interface for 19-24mm includes 16mm & 14CCW adapters
At a Glance
What's in the Box

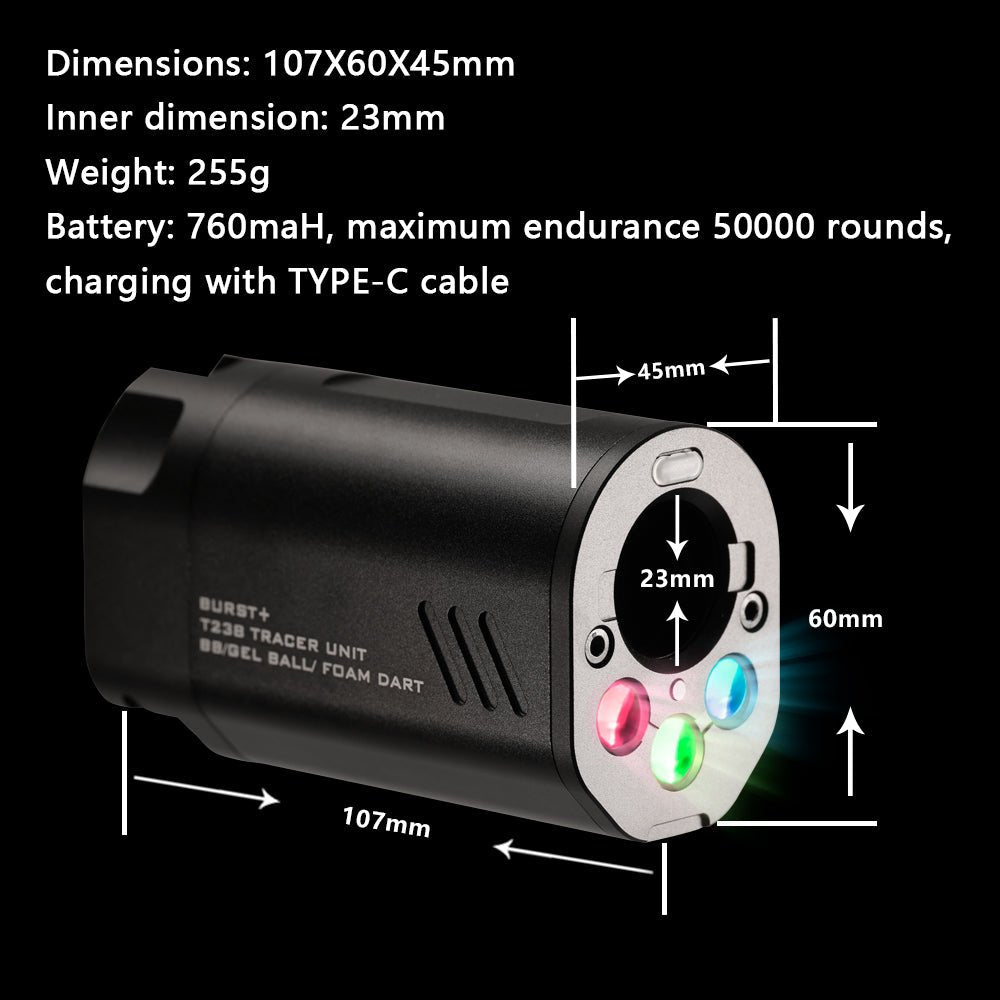

Specification Details:
- Dimensions: 107(L)×45(W)×60(H)mm
- Inner dimension: 23(Ф)mm
- Weight: 255g
- Interface: 19-24mm
- Adapter: 24mm to 16mm CCW/ 24mm to 14mm CCW
- Max ROF: ≤50RPS
- Shots per Charge: ≈50,000
- Battery: 760mAh Li-Po, using Type-C port charging
Package Includes:
- 1 * T238 BURST+ tracer unit
- 1 * Type-C cable
- 1 * 24mm to 16mm adapter
- 1 * 24mm to 14CCW adapter
- 1 * Hex key
- 1 * Product manual
- 1 * T238 sticker
Frequently Asked Questions
Frequently Asked Questions
Clarify any uncertainties you might have, ensuring a smooth and hassle-free experience for everyone.
Will the chronograph daybreak work with 43 cal balls?
Only works on airsoft/gelball/foam dart.
This inner diameter is only 14mm, can only be used with calibers smaller than 14mm.
Why are triggers and selectors not effective in all cases?
The causes are as follows:
1. Battery failure
2. Poor contact of the battery plug
3. It is recommended to change the battery to troubleshoot
4. If you still can't solve the problem, please contact: support@t238.net
Can T238 Storm works with red bbs?
It's not allowed to be used! Green only!
Have a question about the Daybreak tracer/chronograph. Is there a way to keep the screen off when in use? For instance, does the screen turn on when I fire?
You can set auto display off to 5s. and when you fire, the screen will auto-turn back on.
How do I reset the FCU to factory settings?
Click the reset button in FCU settings.
Is the IMPULSE rated for 30c continuous discharge and 60c sudden discharge?
It's 42A/84A for 1400mAh battery and 33A/66A for 1100mAh battery.
