T238 DTU V2 QUALITY Micro Switch Version For V2 Gearbox
T238 DTU V2 QUALITY Micro Switch Version For V2 Gearbox

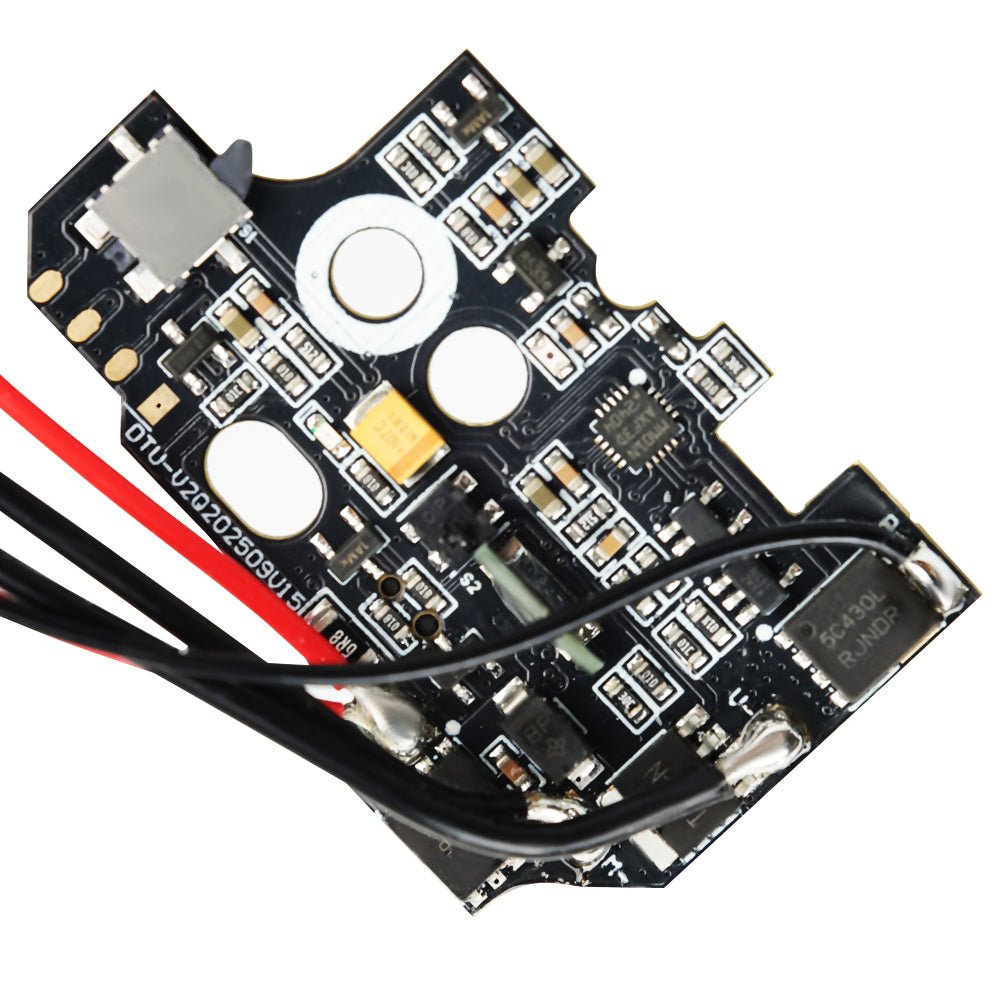

The V2 QUALITY is a programmable MOSFET electronic trigger system based on the T238 platform, engineered specifically for V2 gearboxes. Featuring full micro switch technology, it integrates intelligent control with comprehensive protection to enhance performance, reliability, and versatility.
Comprehensive circuit and mechanical protection includes real-time monitoring of motor/magazine short circuits and MOSFET temperature; automatic battery cell detection with adjustable low-voltage protection; automatic shutdown with alarm during gearbox jams to prevent secondary damage.
Key Features:
Dimensions: 45×30×14mm
Operating voltage: 6-16.8V
Max current: Startup 300A, Braking 85A, Magazine 30A

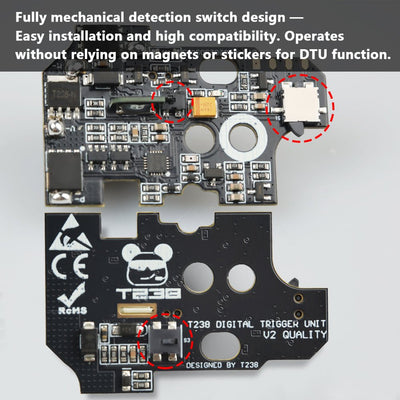

Full micro switch for detection
Motor short circuit/MOSFET overheat/Battery over-discharge/Gear block-up protection
Programmable auto-loading duration and multiple firing modes
Active brake technology for instant piston stopping
Compatible gearboxes:
V2: G&G ARP9, Novritsch SSR4/SSR9, S&T M4, JM9, FB1.0-3.0, Kublai, Jingji, Jiqu etc.
DTU
Designed to sync flawlessly with the BL-480 motor. No braking conflicts, just seamless performance—elevate your control.
Tracer Unit
Pair with the airsoft for precision and visibility. Track every shot with unmatched clarity, only from T238.
T238 Digital Trigger Unit V2 QUALITY
- Pre-cocking
- Sniper Delay
- ROF Control
- Multiple Programmable Shooting Mode
Multiple Fire Modes
Quickly switch between settings via trigger programming
- Semi-auto
- Full-auto
- Binary-trigger
- 3 Rounds Burst
- Sniper Delay

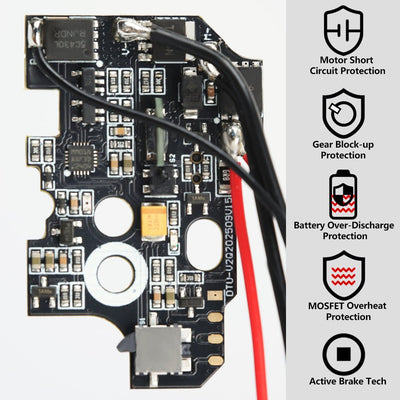

5-Safeguard Tech
Short-circuit/ Over-discharge/ Overheat/ Block-up/ Low-voltage protection
- Motor Short Circuit Protection
- MOSFET Overheat Protection
- Active Brake Tech
- Gear Block-up Protection
- Battery Over-Discharge Protection
Integrated Ultra-Low Resistance MOSFET
Supports up to 300A inrush current and 85A braking current.
Motor Short Circuit Protection
Automatically cuts off power during short circuits (LED fast flashing).
Gear Block-up Protection
When the sector gear is stuck or the gear detection switch cannot detect gear rotation, the system stops the motor and emits an long 'beep' sound.
Battery Over-Discharge Protection
Emits "Beep! Beep! Beep! Beep!" alarm via motor when battery voltage is low and enters sleep mode.
MOSFET Overheat Protection
When the MOSFETs are overheated, the motor will only emit a short beep after the trigger is pulled, then the system restarted after cooling.
Pre-cocking
By delaying the braking timing, the piston is stopped at the rear of the gearbox, pre-compressing the spring. On the next trigger pull, the gears only need to rotate a small angle to release the piston and complete the cycle, thereby significantly improving trigger response.
Sniper Delay
A specialized function designed specifically for AEGs to mimic bolt-action sniper rifles. It aims to replicate the firing rhythm of a real sniper rifle and enhance the tactical experience.
High-Temperature Resistant Teflon Wire - Handles extreme build setups
Features 18AWG diameter for easy bending and shaping, effortlessly fitting into gearbox wire channels.

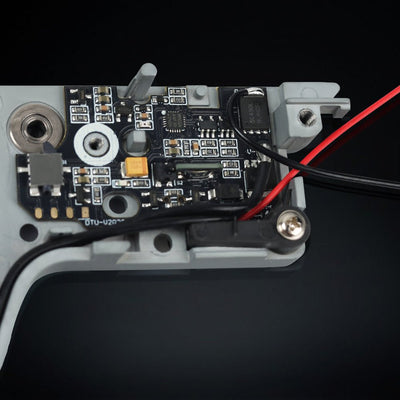

Universal Fit
Compatible with standard V2 gearboxes (minor mods may be required)
- AEG
- Gel Ball
- Split Gearbox
Pro Firing Modes
1. Binary Mode: Fires once when pulling AND releasing the trigger
2. 3 Rounds Burst Mode: Fires 3 shots when pulling the trigger
V2 QUALITY DTU Offers Front-wire and Rear-wire Versions
The front-wire version features flat connectors for easy T-dean disconnection, enabling wires to pass through narrow spaces.
Choose Your Style
- Rear-wire
- Front-wire
Ideal Use Cases
- Competition Play - Binary trigger for rapid firing
- Gel Blaster Mods - Auto-loading function (magazine motor runs 1s after reload)
- Beginners - Core functions + anti-error protection
Critical Notices
- Reverse battery polarity is prohibited - will cause permanent DTU damage
- PCB modification is prohibited - will cause permanent DTU damage
- Use springs below M150 (high-torque motor required for M150+)
- Secure the motor during testing to prevent accidental activation
At a Glance
What's in the Box

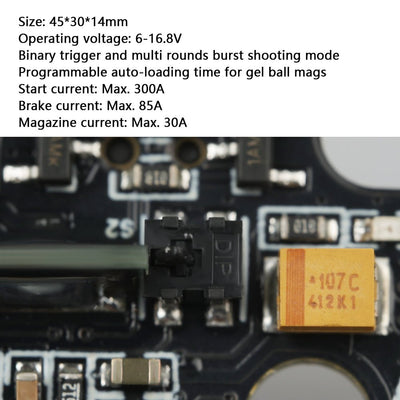

Technical Specs Chart:
- Dimensions: 45(L)×30(W)×14(H)mm
- Voltage Range: 6-16.8V
- Start current: Max. 300A
- Brake current: Max. 85A
- Magazine current: Max. 30A
- Gearbox Fit: M4/AR Series
Package Includes:
- 1 * T238 DTU V2 QUALITY Unit
- 1 * Accessories Package
- 1 * T238 Patch
- 1 * Product Manual
